Concerto System Layouts

Click image below for larger view.

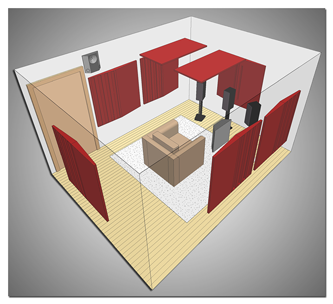

  • System 150
    For 150 sq. foot rooms

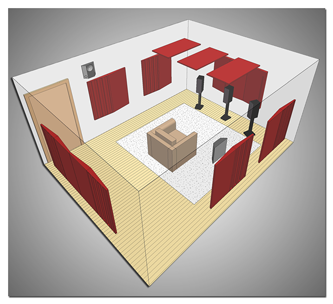

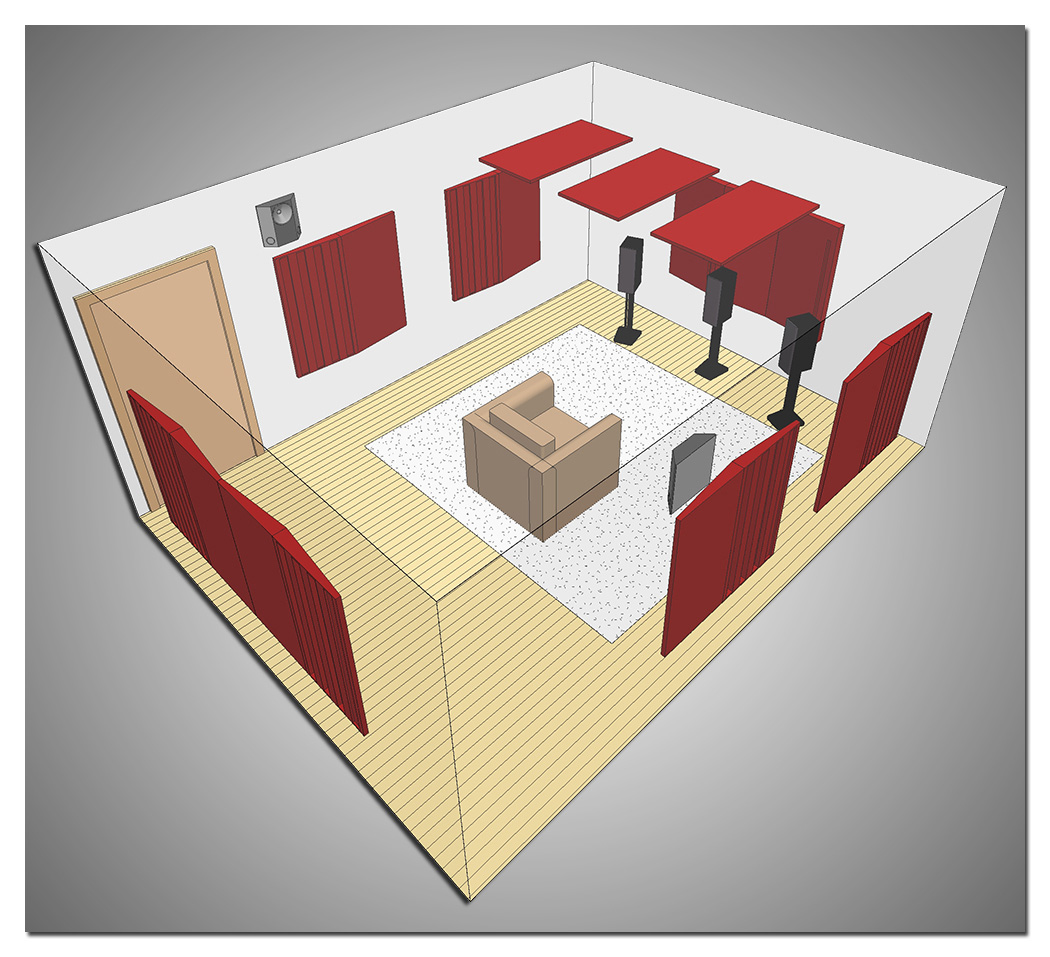

  • System 250
    For 250 sq. foot rooms

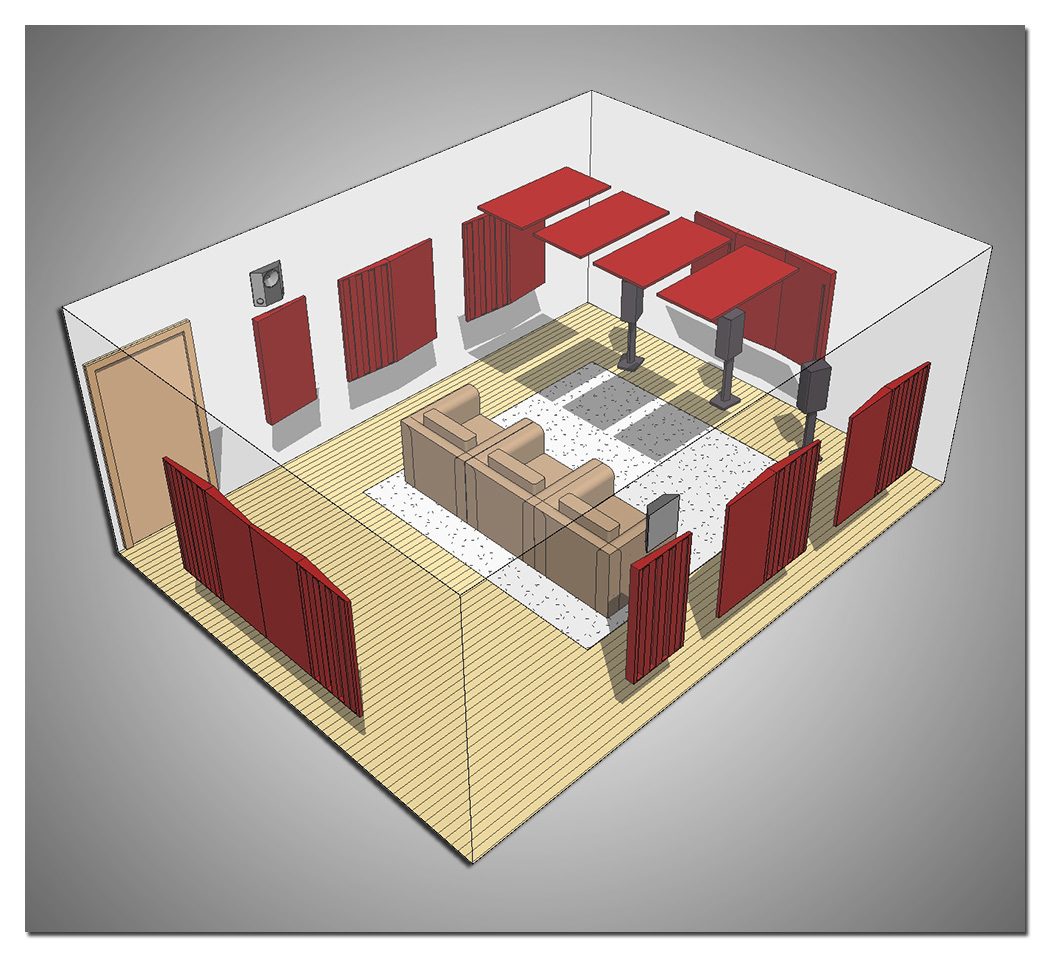

  • System 350
    For 350 sq. foot rooms




5 Wedge Absorber Panels
5 Wedge Diffuser Panels
2 Ceiling Clouds
2 Bazorber Panels



6 Wedge Absorber Panels
6 Wedge Diffuser Panels
3 Ceiling Clouds
3 Bazorber Panels



7 Wedge Absorber Panels
7 Wedge Diffuser Panels
4 Ceiling Clouds
3 Bazorber Panels

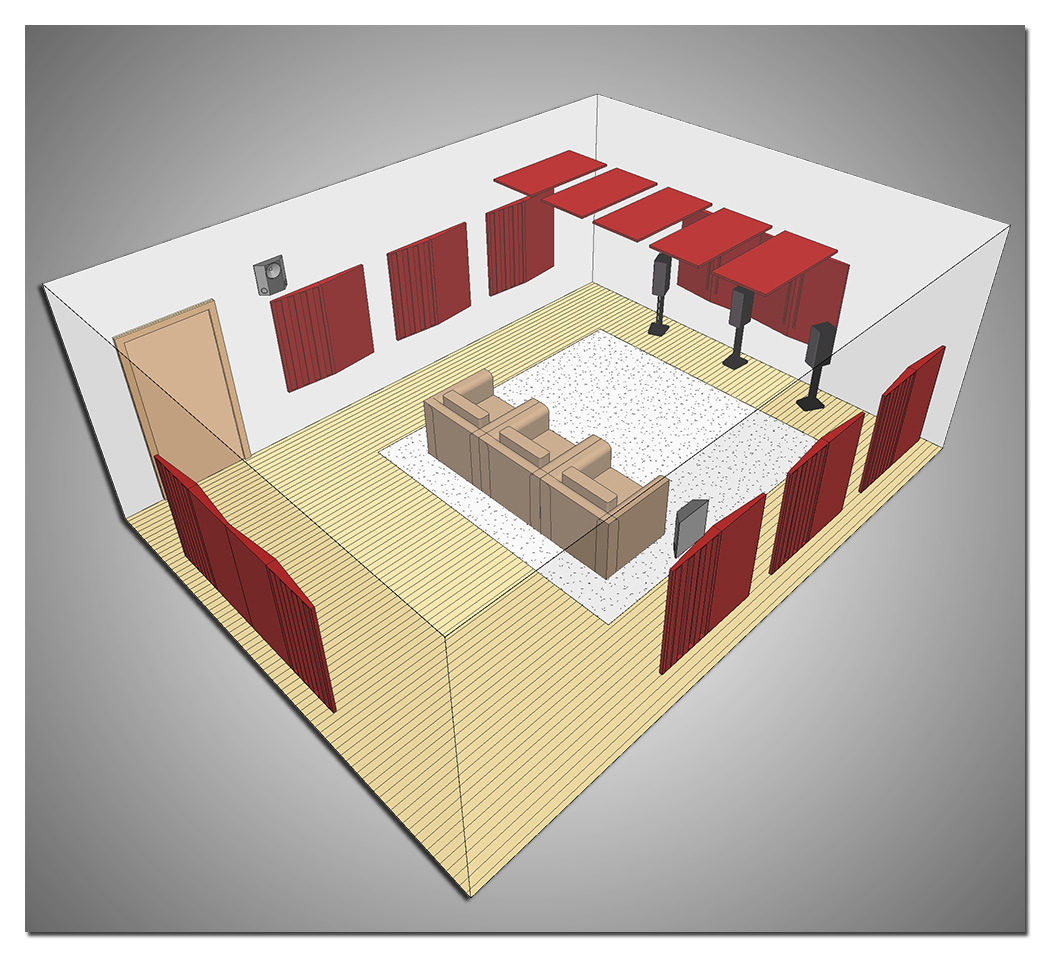

  • System 450
    For 450 sq. foot rooms

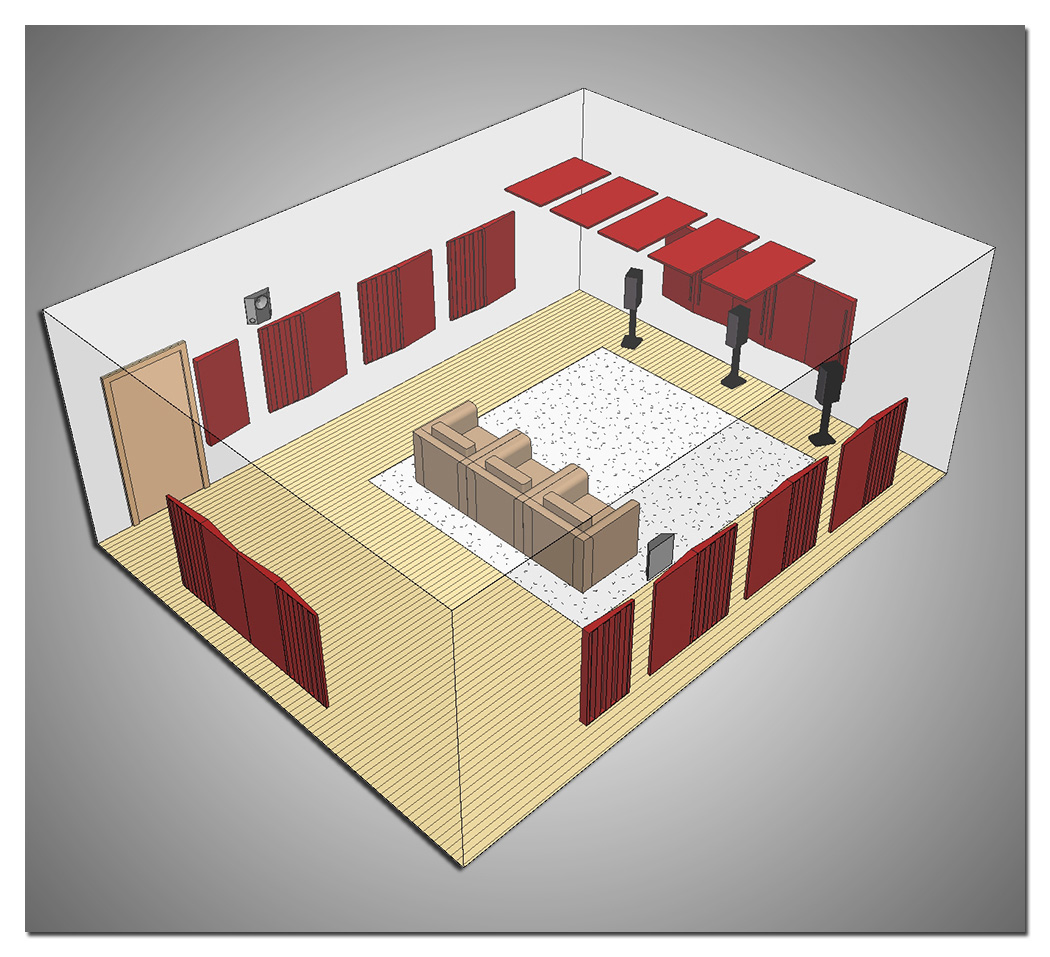

  • System 550
    For 550 sq. foot rooms

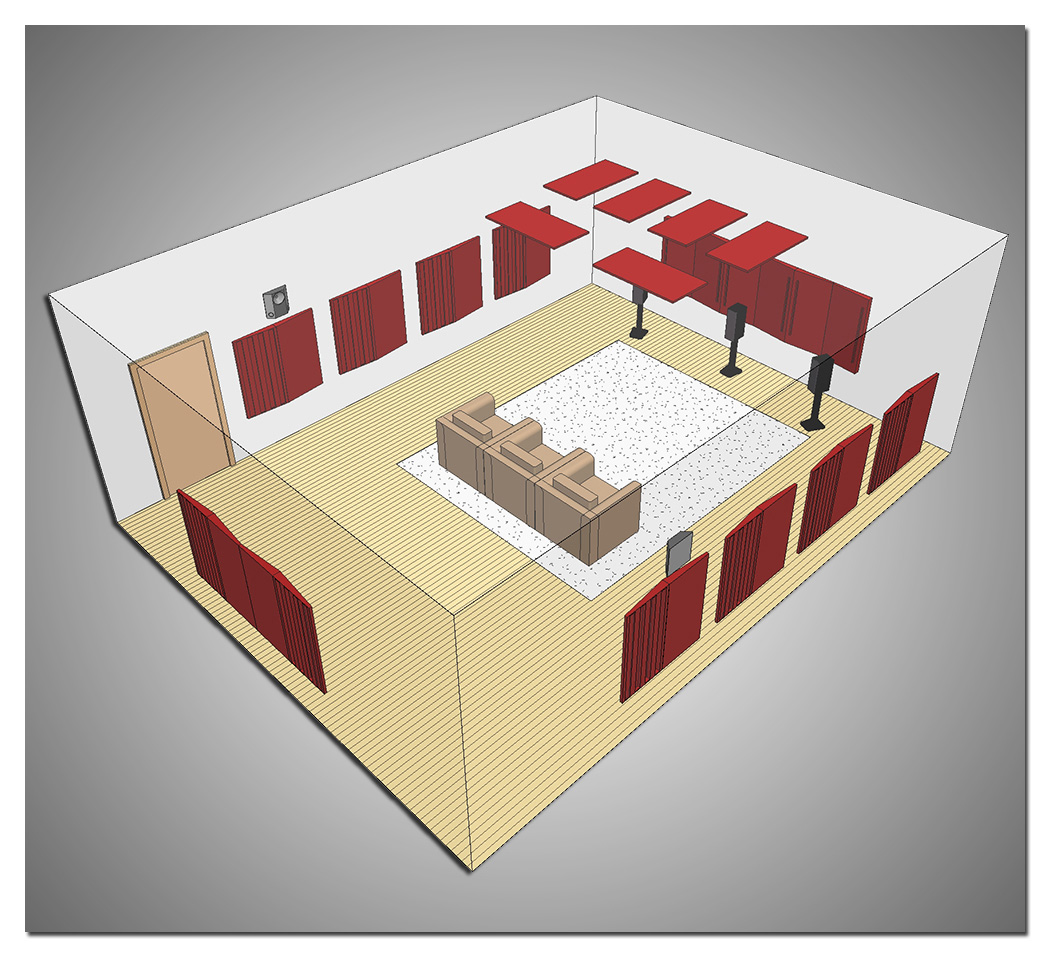

  • System 650
    For 650 sq. foot rooms




8 Wedge Absorber Panels
8 Wedge Diffuser Panels
5 Ceiling Clouds,
4 Bazorber Panels



9 Wedge Absorber Panels
9 Wedge Diffuser Panels
5 Ceiling Clouds
5 Bazorber Panels



10 Wedge Absorber Panels
10 Wedge Diffuser Panels
6 Ceiling Clouds
6 Bazorber Panels
