SõN Acoustics System Layouts

Click below for larger image

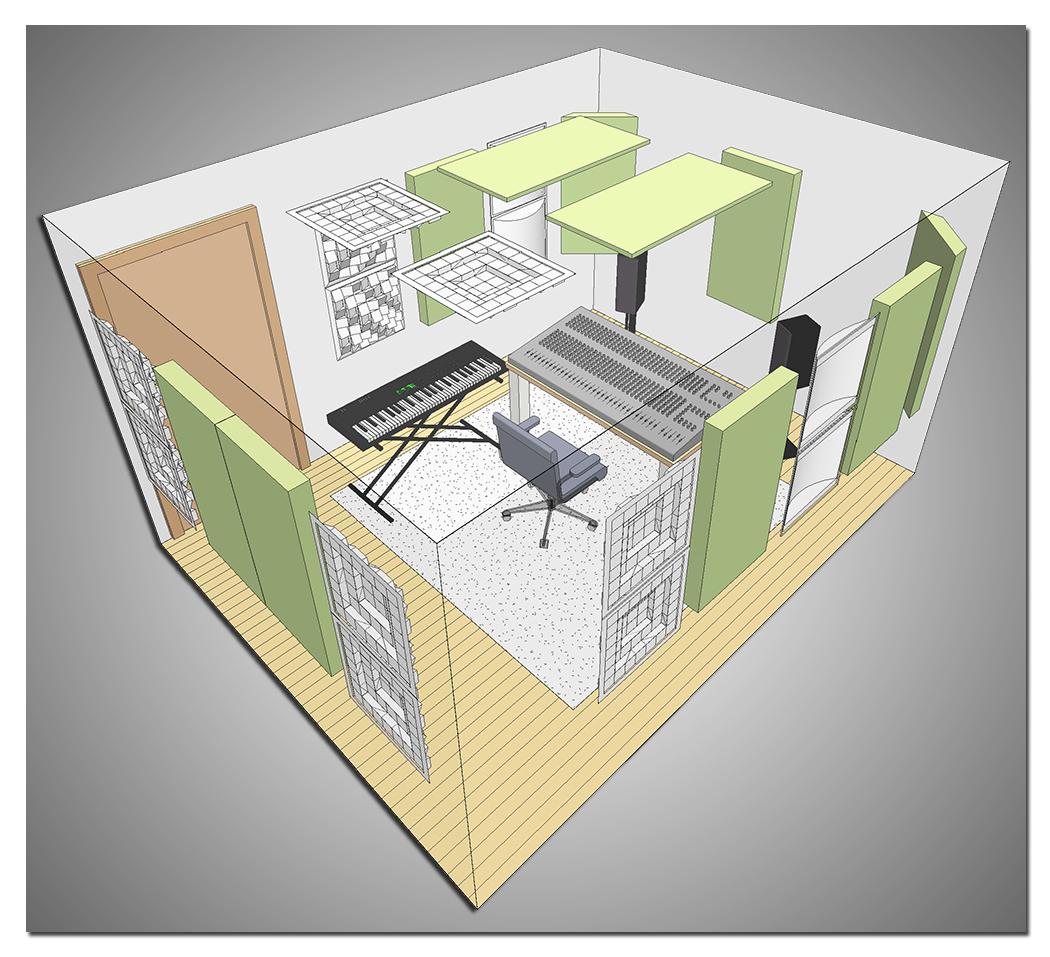

  • System 150
    For 150 sq. foot rooms

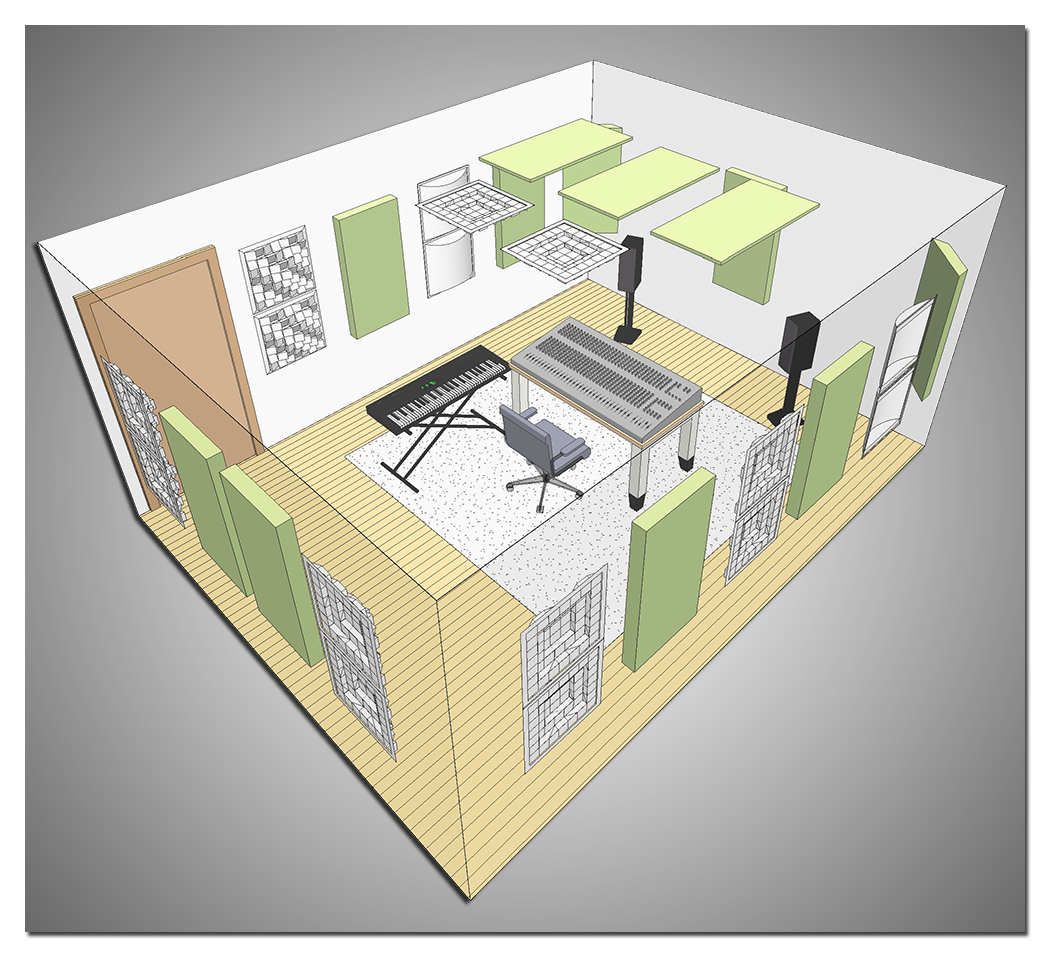

  • System 250
    For 250 sq. foot rooms
150   250


5 Absorber Panels
1 Flat Bass Filters
2 Corner Bass Filters

2 Ceiling Cloud
10 DR2 Diffusers
4 DC2 Diffusers





6 Absorber Panels
1 Flat Bass Filters
2 Corner Bass Filters

3 Ceiling Cloud
12 DR2 Diffusers
4 DC2 Diffusers

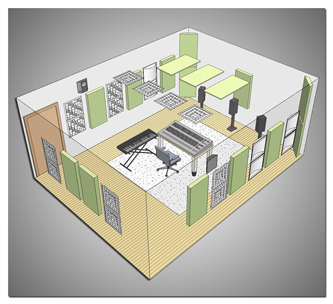

  • System 350
    For 350 sq. foot rooms

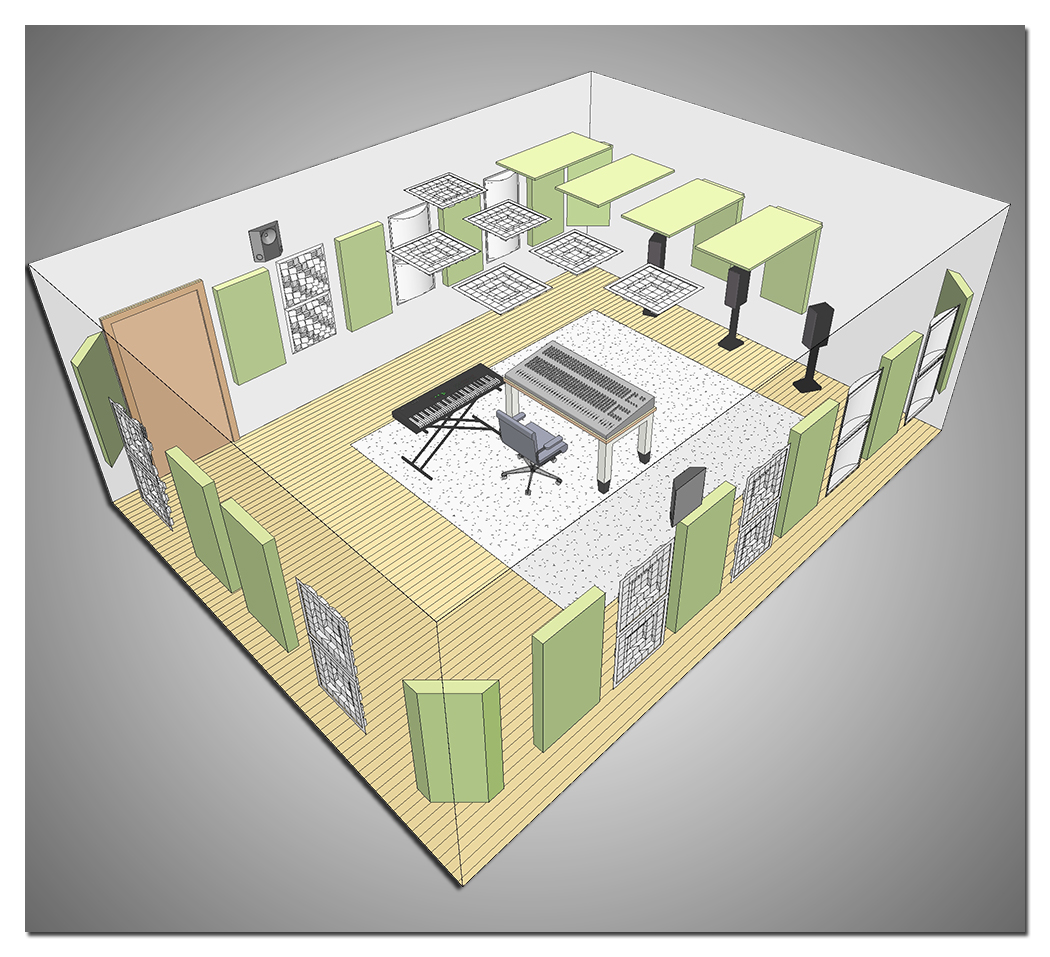

  • System 450
    For 450 sq. foot rooms
450   550


8 Absorber Panels
1 Flat Bass Filters
4 Corner Bass Filters

3 Ceiling Cloud
14 DR2 Diffusers
6 DC2 Diffusers



10 Absorber Panels
2 Flat Bass Filters
4 Corner Bass Filters

4 Ceiling Cloud
16 DR2 Diffusers
8 DC2 Diffusers
